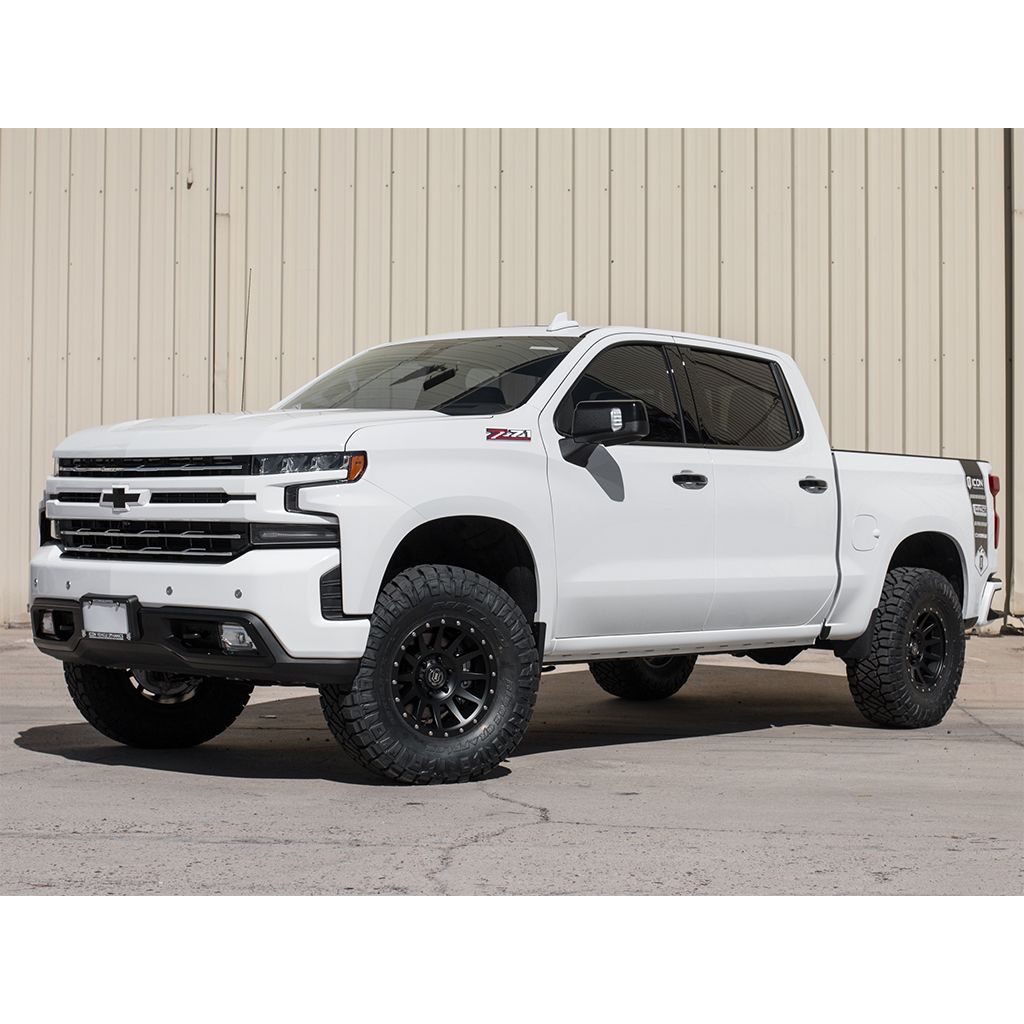

ICON 2019-2023 GM 1500, 1.5-3.5 Lift, Stage 1 Suspension System

ICON Vehicle Dynamics 2019-2023 GM Silverado/Sierra 1500 suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the GM platform's suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1.5-3.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2023 GM Silverado/Sierra 1500 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• 7.5” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
• 2.5 Series coilovers feature corrosion resistant CAD plated shock body with 7/8 shaft
• Direct bolt-in design makes for a simple and straightforward installation
• Adjustable coilovers provide 1.5-3.5” of front lift height
• 2.0 Aluminum Series rear shocks feature corrosion resistant anodized shock body with 5/8 shaft
• FK Rod End bearings provide extended longevity and minimal deflection
• Increased lift height allows for fitment of larger and more aggressive tires
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• Up to 25% increase in front wheel travel over stock
• Shocks are fully rebuildable and revalvable

TECH NOTE: Recommend replacing OE rear blocks on Silverado 1500 Trail Boss and Sierra 1500 AT4 models with 1 rear blocks if level stance is desired. See ICON part numbers 51001 and 52050.;Recommended Aftermarket Tires (Silverado): 35x12.50 (Minor fender trimming and modifications may be required);Recommended Aftermarket Tires (Sierra): 34x12.00 (Minor fender trimming and modifications may be required);Recommended Aftermarket Wheels: ICON Alloys - 18x9 w/ 5.00” Backspace / 0mm Offset;Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 w/ 4.75” Backspace / 0mm Offset;APPLICATION NOTE #48: SLIGHT MODIFICATIONS TO FACTORY SHOCK MOUNTS MAY BE REQUIRED;APPLICATION NOTE #110: MINOR TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE;OEM Wheels & Tires Fitment: Yes;APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE;Recommended Aftermarket Wheels: ICON Alloys - 20x9 w/ 5.00” Backspace / 0mm Offset;TECH NOTE: Not compatible with models equipped with Adaptive Ride Control (ARC);TECH NOTE: Not compatible with models equipped with 4-cylinder engine;TECH NOTE: Not compatible with Silverado 1500 ZR2 or Sierra 1500 AT4X sub-models;TECH NOTE: Not compatible with models equipped with torsion bar front springs;TECH NOTE: Chevrolet Silverado Trail Boss and GMC Sierra 1500 AT4 lift height range 0-1.5 over stock;Ships In Multiple Boxes;TECH NOTE: Models equipped with Duramax 6-cylinder diesel engine will have lift height adjustment range reduced by approximately .5;TECH NOTE: Included rear shocks are compatible with 0-2 of rear lift on most models. Rear shocks are not recommended with any additional rear lift on Silverado 1500 Trail Boss and Sierra 1500 AT4.
